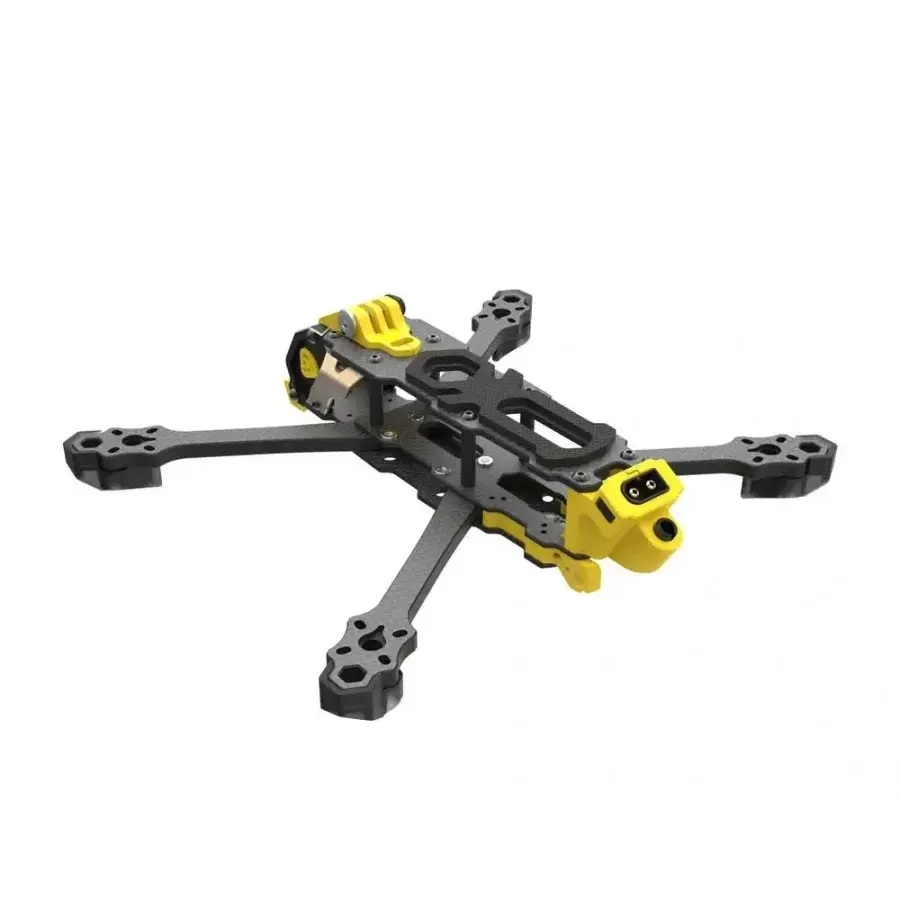

SpeedyBee Mario 5 XH O4 PRO Version
The
SpeedyBee Mario 5 is a high-performance 5-inch FPV drone frame designed for freestyle and racing. It features a
lightweight yet durable carbon fiber build, easy assembly, and compatibility with both
analog and digital FPV systems. With an
innovative stack mounting system and
optimized weight distribution, it offers excellent agility and durability for aggressive flying. 🚀
SpeedyBee Mario 5 Frame
Specifications:
- Model: SpeedyBee Mario 5 Frame
- Mario 5 DC Wheelbase: 227mm
- Mario 5 DC Weight: 129 ±5g (excluding 3D parts), 170 ±5g (with 3D parts and injection)
- Mario 5 XH Wheelbase: 226mm
- Mario 5 XH Weight: 126 ±5g (excluding 3D parts), 167 ±5g (with 3D parts and injection)
- Top Plate Thickness: 2.5mm (T300 3K)
- Middle Plate Thickness: 2.0mm (T300 3K)
- Bottom Plate Thickness: 2.5mm (T300 3K)
- Arm Thickness: 6mm (T300 3K)
- Camera Mounting Screw: 7mm
- 3D Printed Parts: Yellow TPU
- Battery Anti-Slip Pad: 3mm Silicone
- Motor Spring Hole Position: Φ8mm
- Compatible Prop Size: Max 5.1 Inch
- Motor Mounting Hole Distance: 16-19mm
- FC Mounting Hole: 30.5x30.5mm (M3)
- VTX Mounting Hole: 20x20mm (M2) / 25.5x25.5mm (M2)
- Head Material: Aviation Aluminum Alloy
- Aluminum Column Material: 7075 D5*23mm / D46*22mm
- Internal Mounting Height: 23-31mm
- Receiver Installation Space: 25x13x6mm
- Capacitor Size: Φ10mm x 20mm
- GPS Installation Size: 18x18x7mm
- Camera Compatibility: 19mm / 20mm
